WebViewFactory.getProvider耗时问题的一种解决思路

背景

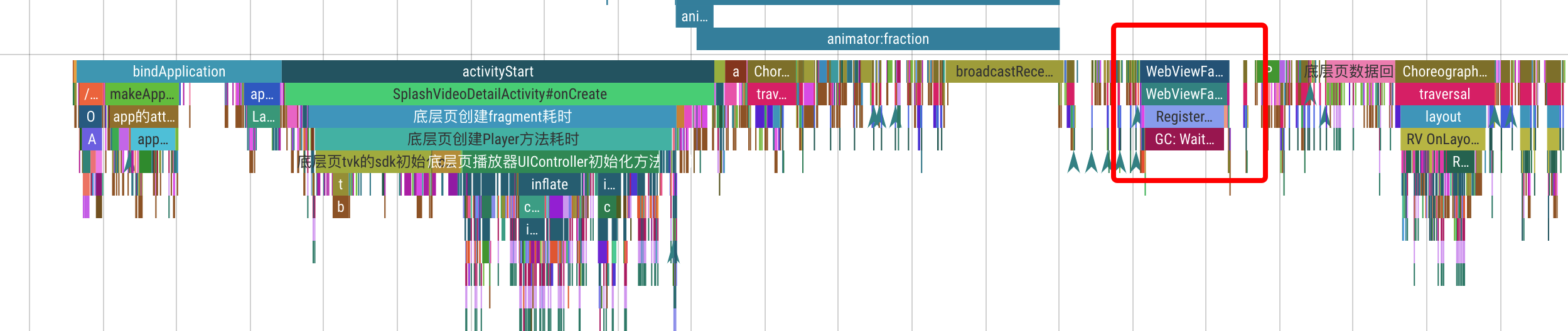

最近在做外部拉起视频底层页整个链路上的一个耗时优化，发现在这个过程中有一个地方挺耗时的，如下所示：

可以看到这个WebViewFactory.getProvider()方法耗时了240ms！

找到WebViewFactory的源码如下所示:

static WebViewFactoryProvider getProvider() {
        synchronized (sProviderLock) {
            // For now the main purpose of this function (and the factory abstraction) is to keep
            // us honest and minimize usage of WebView internals when binding the proxy.
            if (sProviderInstance != null) return sProviderInstance;

            final int uid = android.os.Process.myUid();
            if (uid == android.os.Process.ROOT_UID || uid == android.os.Process.SYSTEM_UID
                    || uid == android.os.Process.PHONE_UID || uid == android.os.Process.NFC_UID
                    || uid == android.os.Process.BLUETOOTH_UID) {
                throw new UnsupportedOperationException(
                        "For security reasons, WebView is not allowed in privileged processes");
            }

            if (!isWebViewSupported()) {
                // Device doesn't support WebView; don't try to load it, just throw.
                throw new UnsupportedOperationException();
            }

            if (sWebViewDisabled) {
                throw new IllegalStateException(
                        "WebView.disableWebView() was called: WebView is disabled");
            }

            Trace.traceBegin(Trace.TRACE_TAG_WEBVIEW, "WebViewFactory.getProvider()");
            try {
                Class<WebViewFactoryProvider> providerClass = getProviderClass();
                Method staticFactory = null;
                try {
                    staticFactory = providerClass.getMethod(
                        CHROMIUM_WEBVIEW_FACTORY_METHOD, WebViewDelegate.class);
                } catch (Exception e) {
                    if (DEBUG) {
                        Log.w(LOGTAG, "error instantiating provider with static factory method", e);
                    }
                }

                Trace.traceBegin(Trace.TRACE_TAG_WEBVIEW, "WebViewFactoryProvider invocation");
                try {
                    sProviderInstance = (WebViewFactoryProvider)
                            staticFactory.invoke(null, new WebViewDelegate());
                    if (DEBUG) Log.v(LOGTAG, "Loaded provider: " + sProviderInstance);
                    return sProviderInstance;
                } catch (Exception e) {
                    Log.e(LOGTAG, "error instantiating provider", e);
                    throw new AndroidRuntimeException(e);
                } finally {
                    Trace.traceEnd(Trace.TRACE_TAG_WEBVIEW);
                }
            } finally {
                Trace.traceEnd(Trace.TRACE_TAG_WEBVIEW);
            }
        }
    }

从代码可以看到这个getProvider里面有做处理：如果已经获取到了WebViewFactoryProvider就直接返回，也就是说只有第一次才会往下走，才会耗时。并且从WebViewFactory注释来看：

Top level factory, used creating all the main WebView implementation classes.

这个WebViewFactory应该是跟WebView相关的，WebView的相关操作最终都会走到这个WebViewFactroy里面来。如果是这样的话，那我们能不能在App启动的时候在子线程提前调用这个getProvider方法来初始化一下这个WebViewFactoryProvider，并且这个getProvider是线程安全的方法。这样UI线程真正使用WebView的时候，这个getProvider方法就能直接返回了？答案是可以的，但是这个getProvider并不是一个public方法，只能通过反射调用了，代码如下所示：

解决方案

public class WebViewHookManager {
    private static final String TAG = "WebViewHookManager";

    /**
     * 提前在子线程里面调用WebViewFactory.getProvider方法，解决第一次调用耗时问题
     *
     * @param isMainProcess 是否是主进程
     */
    public static void initWebViewGetProvider(boolean isMainProcess) {
        if (isMainProcess) {
            ThreadManager.getInstance().post(() -> {
                try {
                    @SuppressLint("PrivateApi")
                    Class<?> webViewFactoryClass = Class.forName("android.webkit.WebViewFactory");
                    @SuppressLint("DiscouragedPrivateApi")
                    Method method = webViewFactoryClass.getDeclaredMethod("getProvider");
                    method.setAccessible(true);
                    method.invoke(webViewFactoryClass);
                } catch (Exception e) {
                    QQLiveLog.e(TAG, e, "WebViewFactory.getProvider");
                }
            });
        }
    }
}

遇到的问题

理论上我们在App启动的时候调用一下上述initWebViewGetProvider方法就可以了，但是实际上并不是如此。这个方法调用时机是有讲究的，不能放在Application.attachBaseContext方法里面调用，原因我们得从源码来查找答案。

在getProvider方法里面调用了一个方法isWebViewSupported：

private static boolean isWebViewSupported() {
    // No lock; this is a benign race as Boolean's state is final and the PackageManager call
    // will always return the same value.
    if (sWebViewSupported == null) {
        sWebViewSupported = AppGlobals.getInitialApplication().getPackageManager()
                .hasSystemFeature(PackageManager.FEATURE_WEBVIEW);
    }
    return sWebViewSupported;
}

在这个方法里面会通过AppGlobals.getInitialApplication()来获取到一个Application，全局搜索AppGlobals这个类来看下这个方法实现：

/**
 * Return the first Application object made in the process.
 * NOTE: Only works on the main thread.
 */
public static Application getInitialApplication() {
    return ActivityThread.currentApplication();
}

可以看到这个方法调用了 ActivityThread.currentApplication()方法，继续来看下这个方法：

Application mInitialApplication;


public static Application currentApplication() {
    ActivityThread am = currentActivityThread();
    return am != null ? am.mInitialApplication : null;
}

可以看到这个currentApplication返回的是ActivityThread里面的成员变量mInitialApplication，继续来看下这个mInitialApplication成员变量赋值的地方，在ActivityThread的handleBindApplication方法里面有如下代码片段：

try {
           // If the app is being launched for full backup or restore, bring it up in
           // a restricted environment with the base application class.
           app = data.info.makeApplication(data.restrictedBackupMode, null);

           // Propagate autofill compat state
           app.setAutofillCompatibilityEnabled(data.autofillCompatibilityEnabled);

           mInitialApplication = app;

           // don't bring up providers in restricted mode; they may depend on the
           // app's custom Application class
           if (!data.restrictedBackupMode) {
               if (!ArrayUtils.isEmpty(data.providers)) {
                   installContentProviders(app, data.providers);
                   // For process that contains content providers, we want to
                   // ensure that the JIT is enabled "at some point".
                   mH.sendEmptyMessageDelayed(H.ENABLE_JIT, 10*1000);
               }
           }

           // Do this after providers, since instrumentation tests generally start their
           // test thread at this point, and we don't want that racing.
           try {
               mInstrumentation.onCreate(data.instrumentationArgs);
           }
           catch (Exception e) {
               throw new RuntimeException(
                   "Exception thrown in onCreate() of "
                   + data.instrumentationName + ": " + e.toString(), e);
           }
           try {
               mInstrumentation.callApplicationOnCreate(app);
           } catch (Exception e) {
               if (!mInstrumentation.onException(app, e)) {
                   throw new RuntimeException(
                     "Unable to create application " + app.getClass().getName()
                     + ": " + e.toString(), e);
               }
           }
       }

这段代码主要分为3部分：
1、app = data.info.makeApplication(data.restrictedBackupMode, null)这句代码里面就会去创建一个Application，并且在里面会调用Application的attachBaseContext方法。执行完这个makeApplication方法之后，这个mInitialApplication才会进行赋值，因此不能在attachBaseContext就去调用WebViewFactory.getProvider方法，因为这个时候ActivityThread里面的mInitialApplication还没有初始化
2、installContentProviders方法会挨个执行ContentProvider的onCreate方法
3、最后mInstrumentation.callApplicationOnCreate(app)会执行Application的onCreate方法，因此我们可以在Application的onCreate方法里面调用WebViewFactory.getProvider方法

从上述代码可以看出这三步的一个执行顺序如下：
Application.attachBaseContext -> ContentProvider.onCreate -> Application.onCreate

效果

通过日志观察WebViewFactory的日志打印，可以看到代码已经执行成功了：

但是目前这个getProvider接口已经被列入了greylist里面了，在后续的版本不敢保证还能继续生效，这里只是提供一种解决问题的思路

优化之后的效果如下所示，可以看到UI线程WebViewFactory.getProvider()方法耗时已经没有了：
